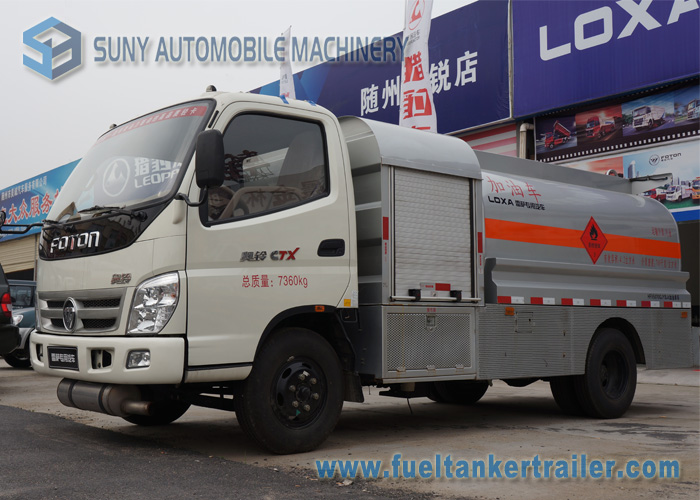

5 Speed Foton 4 x 2 Refuelling Chemical Tanker Truck With Air Braking

Name: 5 Speed Foton 4 x 2 Refuelling Chemical Tanker Truck With Air Braking
Brand: SUNY
Price: 20 USD

Wholesale 5 Speed Foton 4 x 2 Refuelling Chemical Tanker Truck With Air Braking from china suppliers

Brand Name : SUNY

Model Number : BJ1073VEJEA

Certification : CCC, ASME, BV, SGS, etc

Place of Origin : China

MOQ : 1 unit

Price : USD 20,000~ 50,000 FOB Shanghai

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 units/per year

Delivery Time : 25~35 days after we get the deposit

Packaging Details : Ro-ro shipping / Bulk cargo shipping / Container shipping / SKD / CKD / etc.

Max. climb slope : 30%

Min. ground clearance : 470 mm

Traction system : 4*2

Number of axles : 2

Spring plate : 4/6+7

Braking system : Air braking

Tire specification : 7.00-16

Electric system : 24 V

Contact Now

Foton Oil tanker truck 4x2 Refuelling Truck Fuel Tank Truck For Hot Sale

Description:

1. Tank materials: Optional for carbon steel, stainless steel, rotational lining plastic, and FRP;

2. Tank shape: Optional for round square, oval, and round;

3. Functions: The tank can be made to be made to be separated chambers to load different oil or chemical varieties and can be designed as as pump-in and pump-out through measurement;

4. Oil pump: Optional single counting, double counting, and tax control tanker;

5. Pump: According to the use of tankers, can choose centrifugal pumps, gear pump, copper gear pump, stainless steel pump, it has big flow, fast speed of suction and some other characteristics.

Product name	Fuel tank truck
Vehicle description	Overall dimensions (mm)	5900x1960x2190
	GVW (kg)	7350
	Mass in working order (kg)	3655
	Max. speed (km/h)	80
	Max. climb slope (%)	30
	Min. ground clearance (mm)	470
Chassis parameters	Chassis mod	BJ1073VEJEA-A
	Approach/Departure angle (°)	18 / 13
	F/R overhang (mm)	1085 / 1455
	Wheel base (mm)	3360
	F/R track base (mm)	1415 / 1485
	Traction system	4*2
	Number of axles	2
	F/R axle-load (Kg)	2705 / 4645
	Spring plate	4 / 6+7
	Braking system	Air braking
	Tire specification	7.00-16
	Number of tires	4+1
	Electric system	24v
	Allowable passengers in cab	3, 2
	Air-conditioner	optional
Engine	Engine model	CY4102-CE4F
	Type of fuel	Diesel
	Exhaust/Rated Power (ml/kw)	3856 / 73
	Operation control system	Steering wheel
	Manufacturer	Dongfeng Chaoyang Chaochai Engine Co., LTD
	Transmission	5-speed
Up-Parts	Tanker dimension (mm)	3850x1540x1040
	Fact cubage (L)	4460
	Tanker material	Carbon steel
	Tanker thickness	4mm or 5mm
Special equipment	1. Can be used to load different oils, chemicals, and food separately 2. Can be designed to pump in out and downgrade flow measured by flow meter or not
Optional configuration	refueling pump, flow meter, tanker aircraft, refueling reel, pump, bottom valve, several separate compartment, more discharge mouth, more manhole, etc.
Production cycle	10-35 days
Warranty	12 month, from the date of supply
